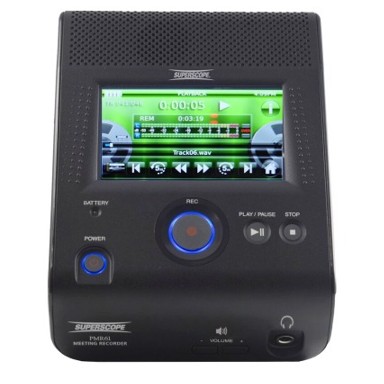

Superscope PMR61 Solid State Recorder

The PMR61 is clearly a different type of recorder. With a simple top panel layout consisting of only four buttons, the user has little opportunity for error. All critical setup functions are included in the touch screen menu, which not only gives immediate status during recording, but also allows for easy setup, navigation, and operation. Superscope PMR61
PMR61 Main Page
PMR61 Features
PMR61 Large View
PMR61 Rear View
PMR61 Side View



Inputs/Outputs

  • USB 2.0 - Media Connection (Type A)
  • USB 2.0 - Computer Connectivity (Micro USB)
  • Balanced Mic / Line Input (XLR & 1/4" Combo x 2)
  • Conference Mic Input (3.5mm x 2)
  • Balanced Line Output (XLR x 2)
  • Aux Input (RCA x 2)
  • Line Output (RCA x 2)
  • Headphone Output (1/4") with Volume Control



    General

    System....................................................... Solid State Recorder
    Number of channels................................... 2 (stereo),1 (mono)
    Usable media ........................................... SD, SDHC memory cards
    Recording and media methods
    .mp3............................................................MPEG1 Layer III compression
    Recording MP3 bitrate, stereo .....................256 / 192 / 128 / 64 / 32 / 16 kbps
    Recording MP3 bitrate, mono ....................128 / / 80 / 64 / 40 / 32 / 16 / 8 kbps
    PCM.............................................................16 & 24 bit linear PCM

    Power Consumption
    Recording/Playback.....................................4.0 W
    Standby (battery driven).............................2.2mW
    Headphone Output power...........................48 mW/32 ohms
    Speaker Output power................................1.5W
    Phantom power..........................................+48V, 10mA

    Audio.
    Sampling Frequency
    Analog..........................................................11.025, 22.05, 44.1 kHz
    Frequency response (PCM 44.1kHz).............20,000 Hz.
    Signal-to-Noise Ratio IEC-A Weighted...........LINE 80dB
    ......................................................................MIC 57dB
    Total Harmonic Distortion at
    0 VU (PCM)...................................................LINE 0.03%
    .....................................................................MIC 0.18%
    Inputs / Outputs.
    MIC IN L/R
    Type............................................................XLR (1:GND, 2:HOT, 3:COLD)
    Input Sensitivity ..........................................-60dbu, -40dbu
    Max input level...........................................-22dBu @ -60dBu / -2dBu @ -40dBu
    LINE IN L/R
    Type...........................................................XLR (1:GND, 2:HOT, 3:COLD)
    Input Sensitivity ........................................-4db, +16dBu
    Max input..................................................+14dBu @ -4dBu / +22dBu @ +16dBu
    LINE IN L/R.
    Type.............................................................RCA stereo jack
    Input Sensitivity .........................................500millivolts rms / 20 kohms
    Max input.....................................................3.8 volts
    LINE OUT L/R
    Type............................................................RCA jack
    Standard Level......................................... ..2.0Vrms max./10 kohms
    Power Supply

  • Power Requirements (100V-240V, 50/60 Hz)
  • Battery Operation Up To 5 Hrs (4 x AA Ni-MH Rechargeable / 2700 mAh)
  • Battery Operation Up To 2.6 Hrs (4 x AA Alkaline /1300 mAh)
    Accessories
  • AC Adapter
  • USB Cable (Type A to Micro B)
  • RCA Audio Cable
  • User Guide (PDF on CD ROM)
    Dimensions
  • Size (7.72 x 2.36 x 5.67 inches)
  • Size (196 x 60 x 144 mm)
  • Weight (2.25 lb without batteries)
  • Weight (1.1 kg without batteries)
  • Shipping Weight (5 lb)
  • Shipping Weight (2.27 kg)
